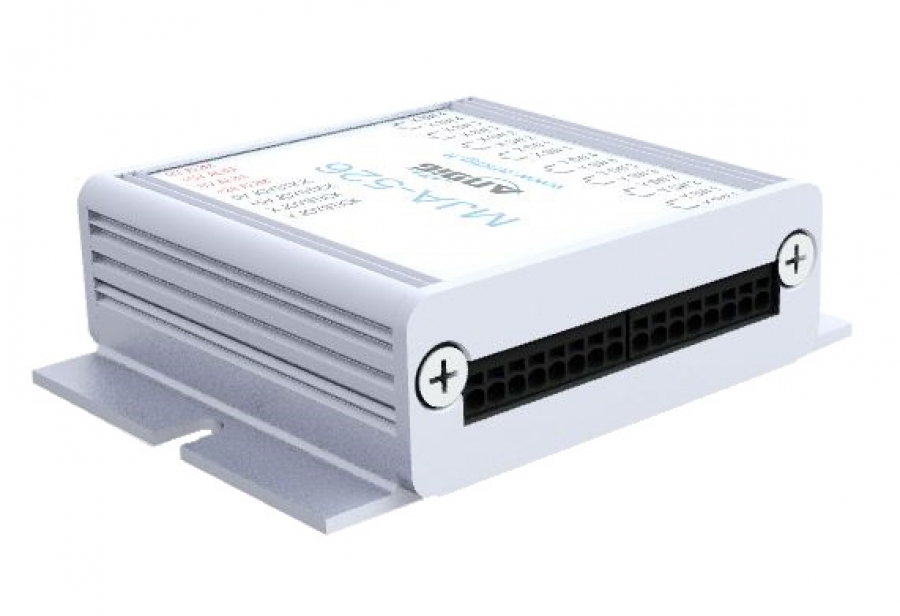

The MJA-526 adds 4 contacts per axis to a joystick. The first contact is activated when the joysticks leaves the central position and the second one when it reaches its end of travel, for the 4 directions X+, X-, Y+, Y-. Upon request, the relative positions of the switches can be adjusted. In order to prevent oscillations, the electronics are designed with a hysteresis of a few degrees.
Details
- 2 axes
- 4 contacts per axis
- All analog joysticks
- The MJA-526-SP1 is designed for the series 812 equipped with potentiometer type « F », with 265° electrical angle
- The MJA-526 is designed for a joystick (Hall & Potentiometer) with output 0..5 VDC
