MCB-397 current loop

MCB-397 current loop

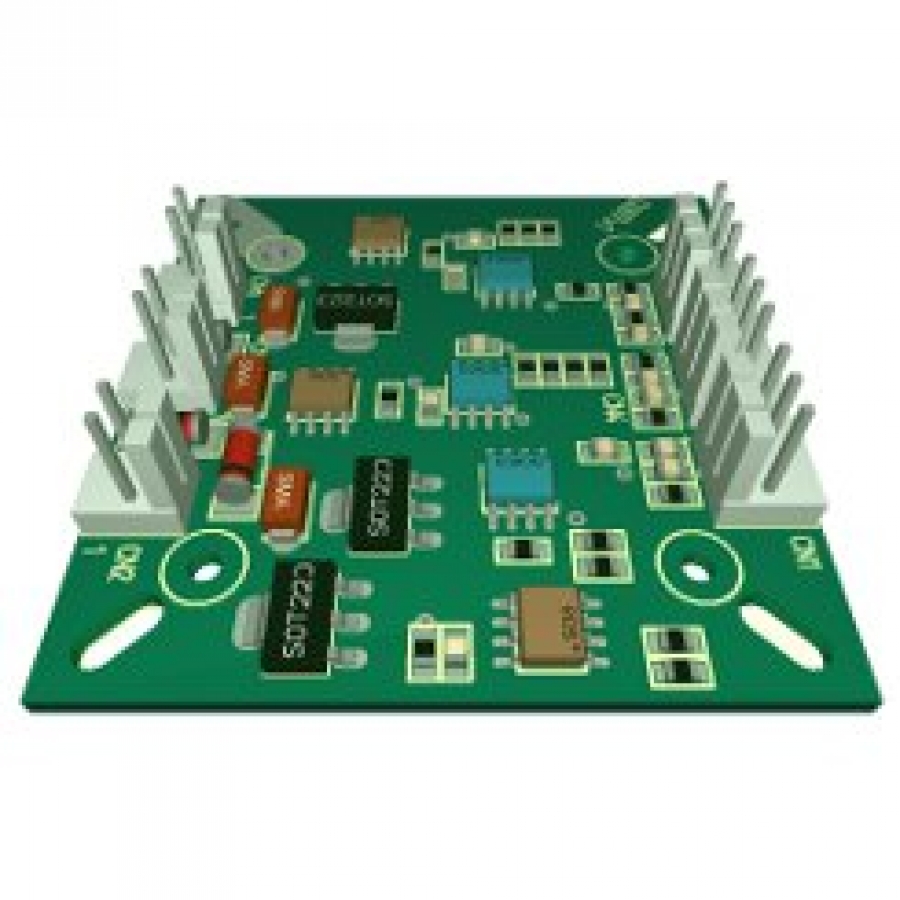

MCB-397 is a current loop adapter for potentiometric joystick. It allows a potentiometric joystick (analog) to be fitted with a 4-20 mA current loop interface.





Details

  • 3 potentiometic axes
  • 4 to 20 mA

The current loop interface is suitable when the joystick is removed from the acquisition system. The current loop of MCB-397 is 'passive' because the power is provided by the PLC. The 3 axes are completely galvanically separated.

The mounting holes allow mounting on rear side of the joysticks 812, 813, 826 and 891.

Documentation

Shortform MCB-397 (En)
