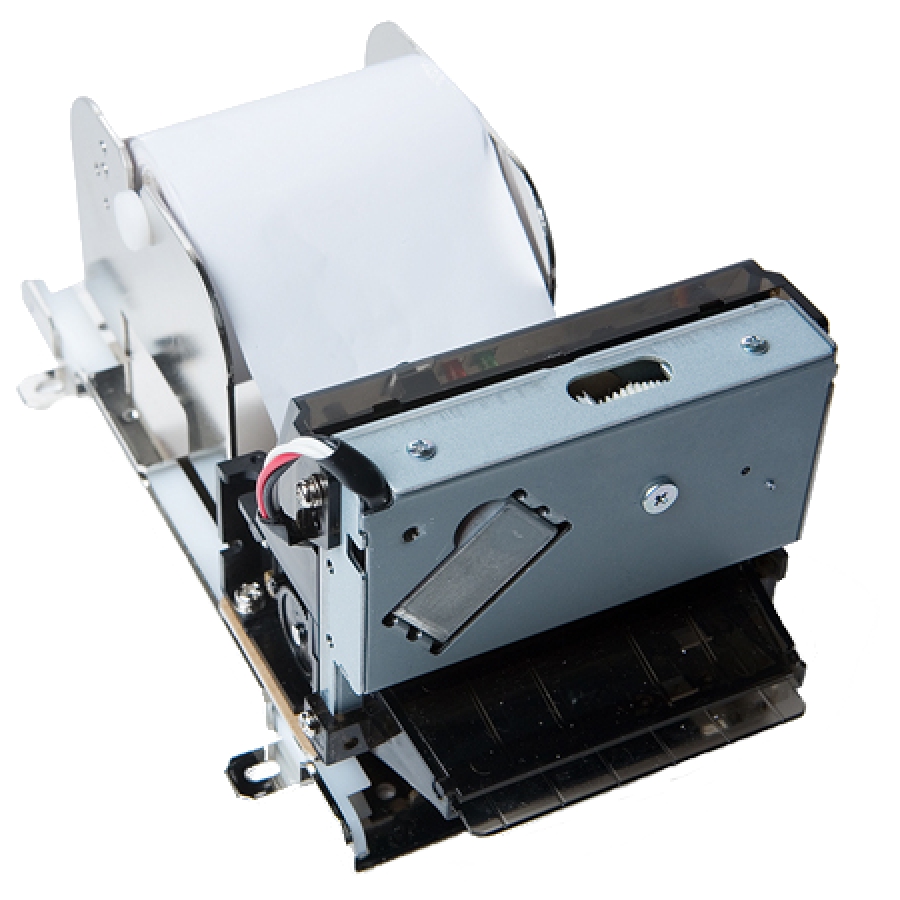

WSP-T280 thermal kiosk printer

The WSP-T280 is a kiosk thermal printer supporting 2" paper and designed to be integrated in various equipments such as ATMs, information kiosks, parking meters, ticket dispensers....





  • Silent printing through direct thermal printing method.
  • Printing width 48 mm
  • Standard roll diameter: 80 mm, 200 mm (option)
  • High speed (120mm/sec)
  • High resolution (203dpi : 8dots/mm).
  • UART interface (RS-232C or TTL), USB [option].
  • Low energy consumption
  • Auto-cutting
  • Support text and graphic impression.
  • Easier maintenance with self-diagnostic
  • Microsoft Windows, Linux, Android



Specifications

Features

              WSP-T280
Dimensions 169x 87.5 x 103 mm
Roll diameter 80 mm / 200mm (option)
Weight 784g


Printing head

Printing method: Direct thermal printing
Characters per line : 48 cpl (max)
English characters size: 9x24 dots, 12x24 dots, 8x16 dots
Korean characters size : 16x24 dots , 24x24 dots
Optional characters : Simplified/traditional Chinese, Arabic, Cyrillic, Russian, Turkish, Greek, Japanese, Persian, Latin9 and others as requested
Resolution : 203 dpi, 8 dots /mm
Printing width : 2" (48 mm), 384 dots
Printing speed : 120 mm/sec (max)

Power supply
24VDC ~ 3A OVER

Interface
RS232C , TTL or USB (option)

Paper
Automatic paper loading
Thermal paper roll width 60 ±0.5 mm
Roll diameter: 80 mm or 200 mm (option)
Paper thickness : 60 ±5 µm

Barcodes
1-dimension :UPC-A, UPC-E, EAN-8, EAN-13, CODE-39, CODE-93,
CODE-128, ITF, CODABAR

2-dimension :PDF417, Micro PDF417, Truncated PDF417, QR-CODE,
DATA Matrix, Maxicode

Etc :GS1 databar

Specifications
H/W Spec : MCU : RX-32bit, RAM : 128M bit, FLASH : 64M bit
Receive buffer size : 1M bytes
Operating temperature : -10°C ~ +50°C
Storage temperature : -10°C ~ +70°C
Mechanical life : 37,000,000 lines
Life expectancy of the printing head : ~ 50 Kms
Option :Sliding mount assembly

Drivers
Microsoft Windows , Linux
