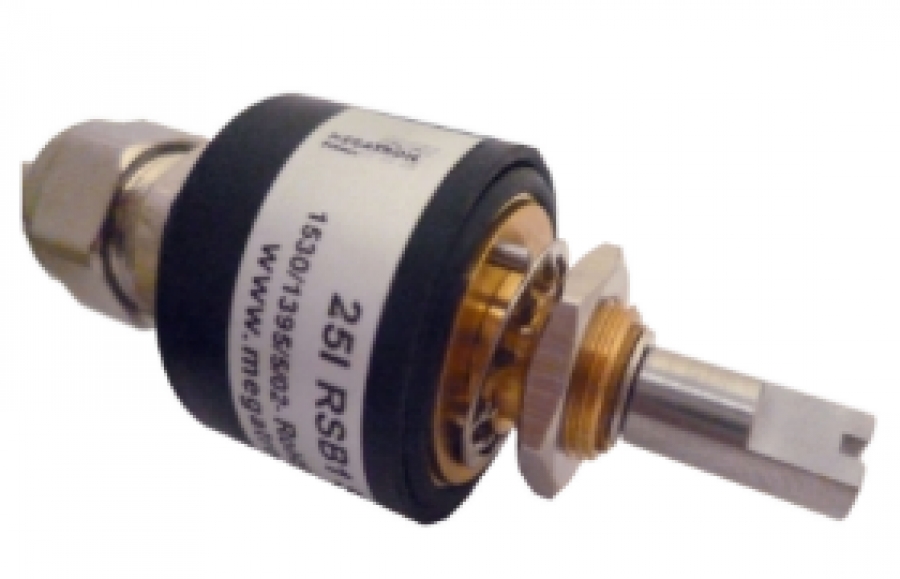

The 25x RSB encoders are Hall effect encoders with an electrical stroke of 360° and bush mounting. They offer a choice of analog, incremental, PWM ,SPI or SSI interface. The robustness of their Nylon 66 frames and stainless steel shafts allow them to operate in difficult conditions.









Examples of available models:

  • Analog: 25A RS B1 S 0505 OCG  /  25A RS B1 S 2410 OCG  /  25A RS B1 S 2442 OCG
  • Incremental: 25I RS B1 S 24OC OCG
  • SPI: 25P RS B1 05 SPI S14 OCG
  • SSI: 25Y RS B1 24 SSI S12 OCG
  • PWM: 25W RS B1 S PWM OCG

Characteristics

  • Ø body 25 mm
  • Ø shaft 6 mm
  • Nylon 66 fiberglass reinforced housing (PA66GF30)
  • Output :
    • Analog : 0-5V, 0-10V, 4-20mA, PWM
    • Incremental : 5V TTL, 5V or 24V Open Collector
    • Digital : SPI or SSI
  • Power supply range :
    • Analog : 5V DC, 9-30V DC, 15-30V DC
    • Incremental : 5V DC, 9-30V DC
    • SPI : 5V DC
    • SSI : 5V DC, 9-30V DC

Documentation

Shortform 25x RSB (EN)

Reading data on SPI AN173 (En)

Reading data on SPI AN172 (En)
