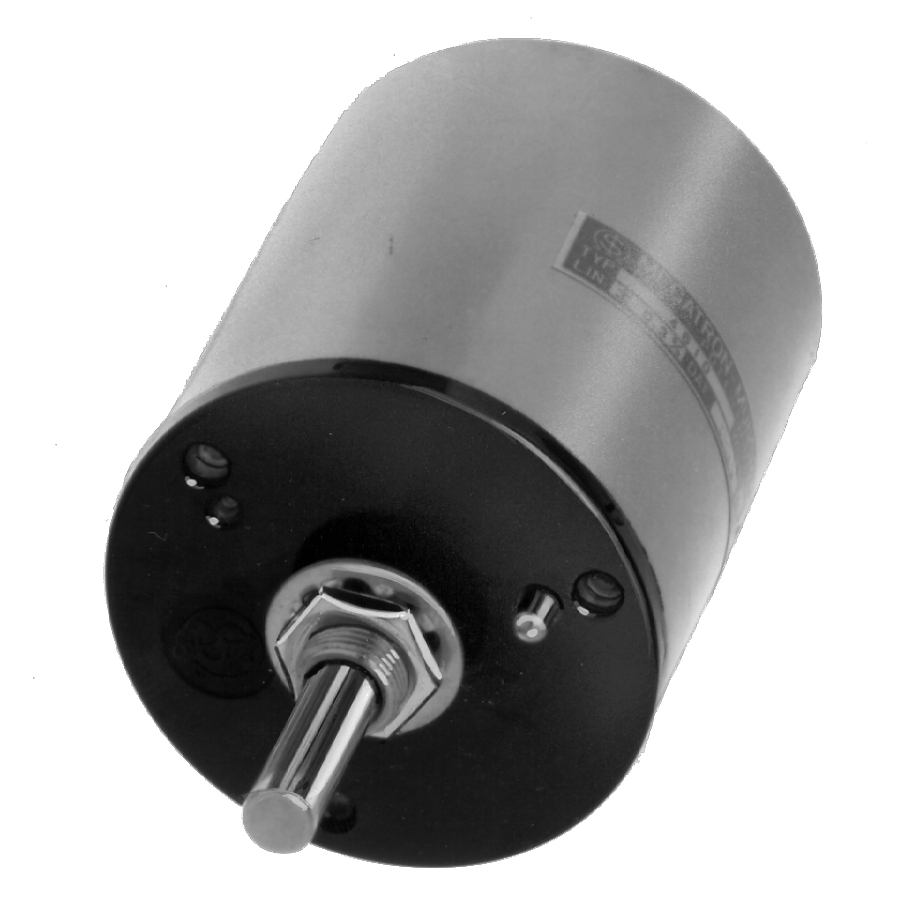

46xx series

46xx series

The 46xx series contains 5 potentiometers : 4603, 4605, 4610, 4615 and 4620. There are available from 3 to 20 turns.

  4603 4605 4610 4615 4620
Turns 3 5 10 15 20
Ohmic value 0.5 Ω to 50 kΩ 0.5 Ω to 100 kΩ 0.5 Ω to 200 kΩ 0.5 Ω to 300 kΩ 0.5 Ω to 500 kΩ
Electrical travel 1080° 1800° 3600° 5400° 7200°
Mechanical travel 1080° 1800° 3600° 5400° 7200°
Standard tolerance ±5 % ±5 % ±5 % ±5 % ±5 %
Standard linearity ±0.3 % ±0.3 % ±0.3 % ±0.3 % ±0.3 %
Power rating 2 W 2.5 W 5 W 7.5 W 10 W
Fixing method Bushing Bushing Bushing Bushing Bushing
Bearing Sleeve bearings Sleeve bearings Sleeve bearings Sleeve bearings Sleeve bearings
Housing diameter x length 46 x 39 mm 46 x 39 mm 46 x 56 mm 46 x 75 mm 46 x 95 mm
Shaft diameter 6 mm 6 mm 6 mm 6 mm 6 mm
Lifetime 2 x106 rotations 2 x106 rotations 2 x106 rotations 2 x106 rotations 2 x106 rotations





Shortform 46xx (En)
