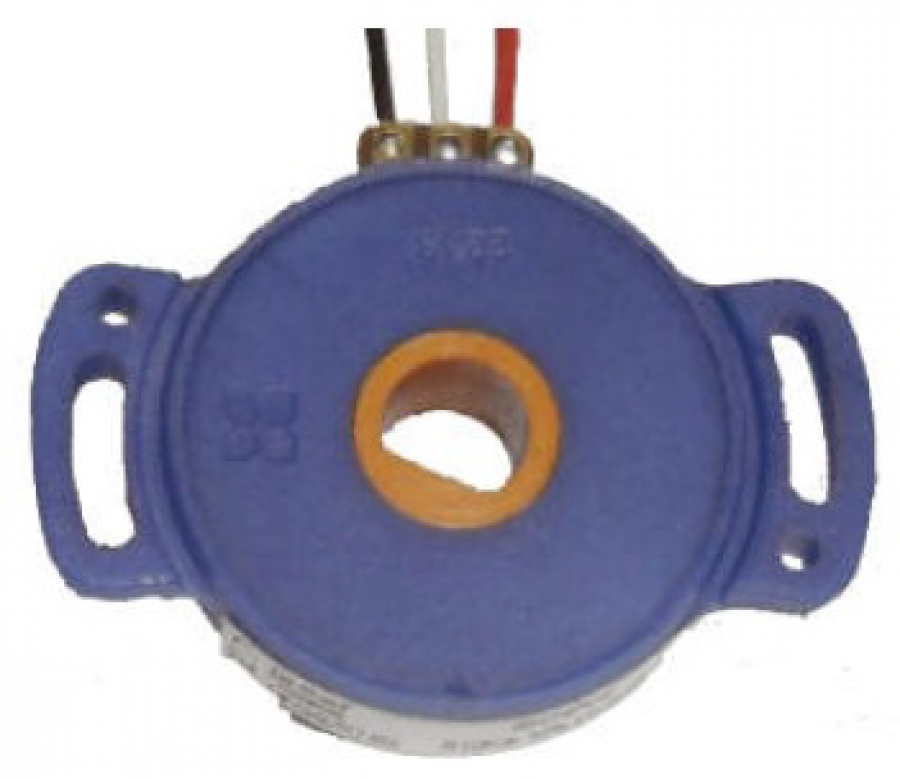

The hollow-shaft 24mm precision conductive plastic potentiometer features a universal adapter flange (omnimount) for flexible mounting and O-print adjustment. The hole is flattened on the inside, making it easy to attach the potentiometer to any shaft. Please note that the shaft orientation relative to the body must be 90°.
- Ohmic values : 1 kΩ, 5 kΩ, 10kΩ (special up to 10kΩ)
- Electrical travel : 340° ± 5°
- Mechanical travel : 360° continuous
- Standard tolerance : ± 20
- Standard linearity : ± 2.0
- Power rating : 0.5 W
- Bearing : sleeve
- Lifetime : 2 x106 rotations
