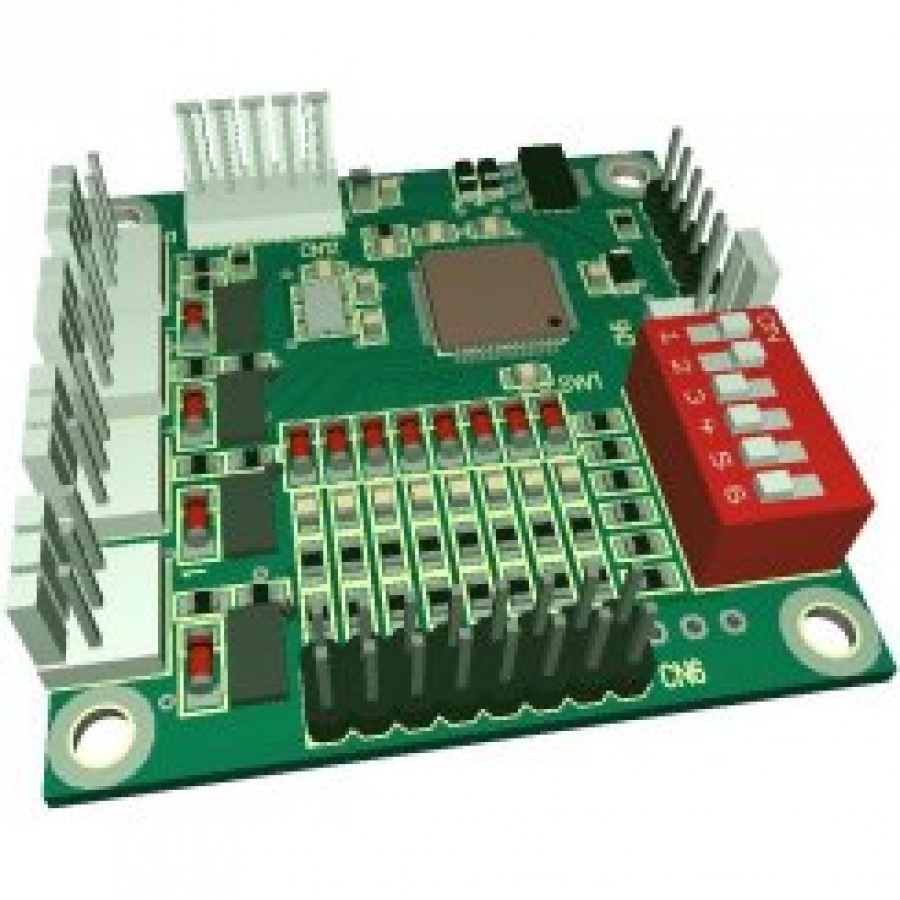

Details
- Acquisition of push-buttons :
- either independent push-buttons (max 8 buttons)
- or in matrix (max 16 buttons)
- Acquisition of the joystick axes inputs (max 4 inputs) on 10 bits
- Central dead zone :
- either with central dead zone (±5%), default mode
- or without central dead zone (if during the validation of the configuration by the user, the axis is maintained close to either its minimum or its maximum).
- VCC power is available in DC 3v3 or 5V depending of the sensors used.
- Potentiometers are mounted as voltage dividers from the VCC=3v3 and GND signals
- 0 to 5V analog inputs are powered with VCC=5V (They can't be used together with potentiometers)
- The digital inputs (TOR) are also possible and can be used with the other two types of sensors. However, two resistors must be added on the user side (see Digital Input diagram).
- Central dead zone :
- Fully user-reprogrammable without any special software required.
- Works as Game controller or Mouse pointer
- Power supply +5V supplied by the computer
Axis connection
 |
 |
 |
| Potentiometer | Analog input 0 to 5V | Digital input |
