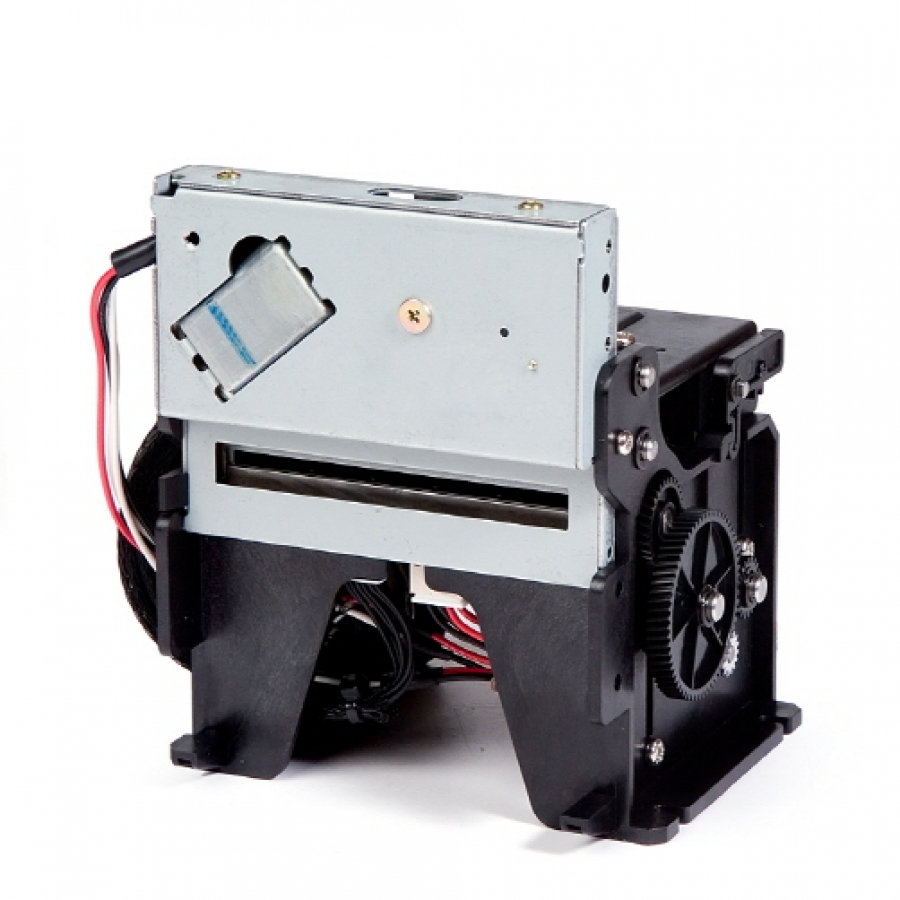

WSP-BT200 2" thermal printer

font size decrease font size increase font size
Print

The WSP-BT200 is a thermal printer operating with 2" paper. This printer can be used on different fields like automatic counters, info-points, pay and display machine, tickets dispenser...

Very silent printing through direct thermal printing method
High speed (150mm/sec, MAX)
High resolution (203dpi : 8dots/mm)
Low power consumption
UART(RS-232C or TTL) Interface
- Parameters : 9600 Baud, N, 8, 1
- Flow control :
  - Software (XON/XOFF)
  - Hardware flow control not supported in printer
Supports text and graphic printing
Easier paper roll loading by CLAMSHELL design
Printer "door open" & "paper-out" sensors
Easy paper handling
Auto cutting
Easier maintenance with self-diagnostic
In field programming – Update Firmware, Download Fonts and Logos
Microsoft Windows 10/ 8/ 7/ VISTA/ XP/ Windows CE, Linux, Android, Blackberry

Details

General details
Weight : 533 g
Dimensions : 99.8 x 87.1 x 111.5 mm

Printing head
Technology : direct thermal line printing
Characters per line : 49 cpl (max)
English character size : 9x24 dots, 12x24 dots
Korean character size : 16x24 dots, 24x24 dots
Optional characters : Simplified/Traditional Chinese, Arabic, Cyrillic, Russian, Tukish, Greek, Japanese, Persian, Latin9 and others upon request
Resolution : 203 dpi, 8 dots/mm
Printing width : 2" (56 mm), 448 dots
Printing speed : 150 mm/sec

Power supply
24V DC, Max 3A

Paper
Thermal roll paper, width of 60 ±0.5 mm
Paper thickness : 60 ±5 µm

Barcode supplied
1-dimension : Code128, Code39, I2/5, Code93, UPC-A, UPC-E, EAN8, EAN13, CODABAR
2-dimension : PDF417, QR Code, DATA Matrix, Micro PDF417,Truncated PDF417

Specificities
Black mark sensor : Support black mark detection
H/W spec: MCU : 32bits RISC, FLASH : 4Mbytes, RAM : 8Mbytes
Receive buffer size : 1M bytes
Operating temperature : -10°C ~ +50°C
Storage temperature : -10°C ~ +70°C
Mechanical lifetime : 37,000,000 lines
Printing head lifetime : ~ 100 Kms

Drivers
Microsoft Windows 10 / 8 / 7 / VISTA / XP, Windows CE, Linux, Android, Blackberry
