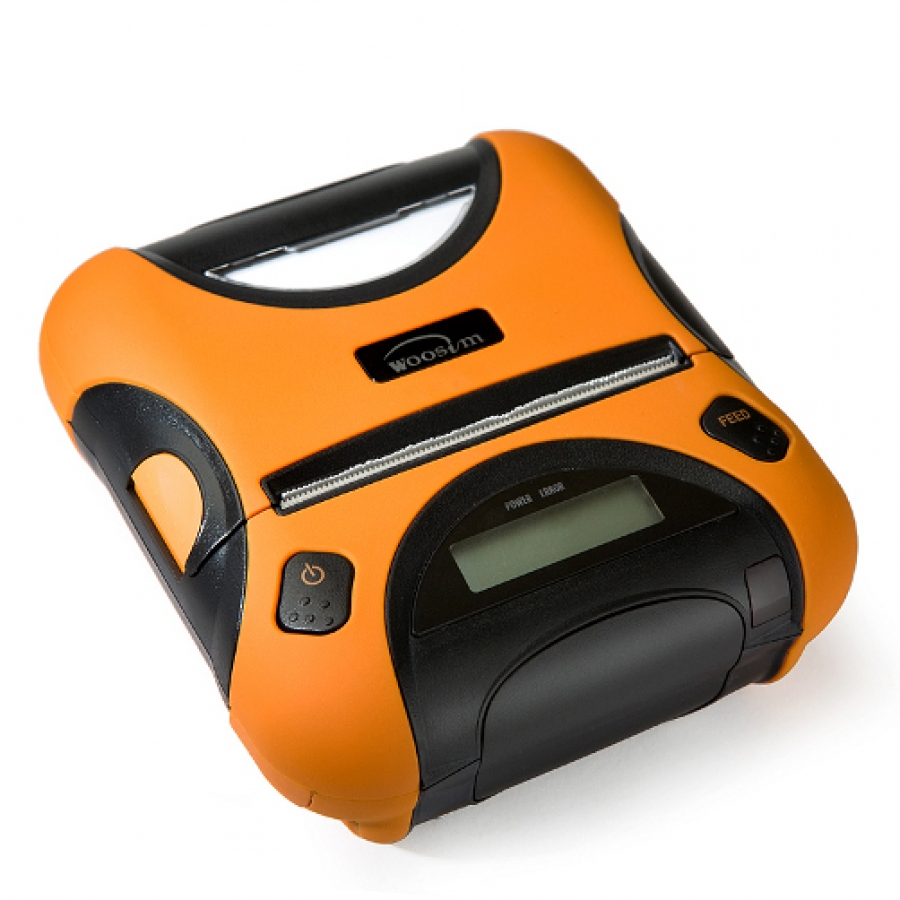

WSP-i350

The WSP-i350 is the ideal solution for Mobile banking system , Retail, point of sales, other traveling and mobile computing...

Details

Compact size (120×130.5×58.3mm)
Light weight(435g) for true mobility [Standard]
Very silent printing thru direct thermal printing method
High speed (120mm/sec, Max)
High resolution(203dpi : 8dots/mm)
Interfaces :
- UART(RS-232C or TTL)
- Bluetooth Ver2.1 + EDR (Enhanced Data Rate)
- IrDA Ver1.0 (SIR)[option],
- USB [option],
- Wireless LAN (IEEE802.11b/g)[option]
Support Graphic LCD(128×32dots) with Blue LED Backlight
Intuitive LED’s indicate Power(on/off), error and battery status
Support text and graphic printing
Easier paper roll loading by CLAMSHELL design
One touch paper cover
Printer "door open" & "paper-out" sensor
Easier maintenance with self-diagnostics
In field programming – Update Firmware, Download Fonts and Logos
Compact and easy to carry around.
Water-resistant construction.( IP54 – Certified )
Free fall: 1.8M drop resistant
Microsoft Windows 10 / 8 / 7 / VISTA / XP
Windows CE, Linux, Android, Blackberry driver compatible
Flow control : Software (XON/XOFF).
Hardware flow control not supported in printer.

Printing method	Direct thermal line printing
Characters per line	D64 cpl (MAX)
Optional Characters	Simplified/Traditional Chinese, Arabic, Cyrillic, Russian, Turkish, Greek, Japanese, Persian, Latin9 and Others upon request.
Character size	Eng. : 9x24dots, 12x24dots Kor. : 16x24dots [24x24dots]
Resolution	203dpi, 8dots/mm
Print width	3-inch (72mm, 576dots)
Printing speed	120 mm/sec (MAX)
Dimensions (WxDxH)	120 x 130.5 x 58.4 mm
Weight	435g
Interface	UART(RS232C), Bluetooth Ver2.1 + EDR In options: IrDa Ver1.0 (SIR), USB, Wireless LAN interface (IEEE802.11b/g)
Paper supplied	Thermal roll paper (80mm wide, 50Ø), Paper thickness : 60±5㎛
Barcode	1-dimension :	Code128, Code39, I2/5, Code93, UPC-A, UPC-E, EAN8, EAN13, CODABAR
	2-dimension :	PDF417, QR Code, DATA Matrix, Micro PDF417, Truncated PDF417, MAXI CODE
Driver	Microsoft Windows 10 / 8 / 7 / VISTA / XP Windows CE, Linux, Android, Blackberry
Black mark	Support black mark detection
H/W Spec.	MCU : 32bit RISC, FLASH : 8M bytes, RAM : 16M bytes
Receive buffer size	1M bytes
Battery	Rechargeable 7.4V DC 1,800 or 2,200mAh (Li-ion)
Battery duration	1 hour continuous printing
AC adapter	Input(100~250VAC, 50~60Hz) Output(8.4VDC/0.8A), 4hours full charge time
Operating temperature	-10°C ~ 50°C
Storage temperature	-10°C ~ 70°C
MCBF (Mean Cycle Between failure)	Mechanical	37,000,000 lines
	Head	Approximately 50Km
