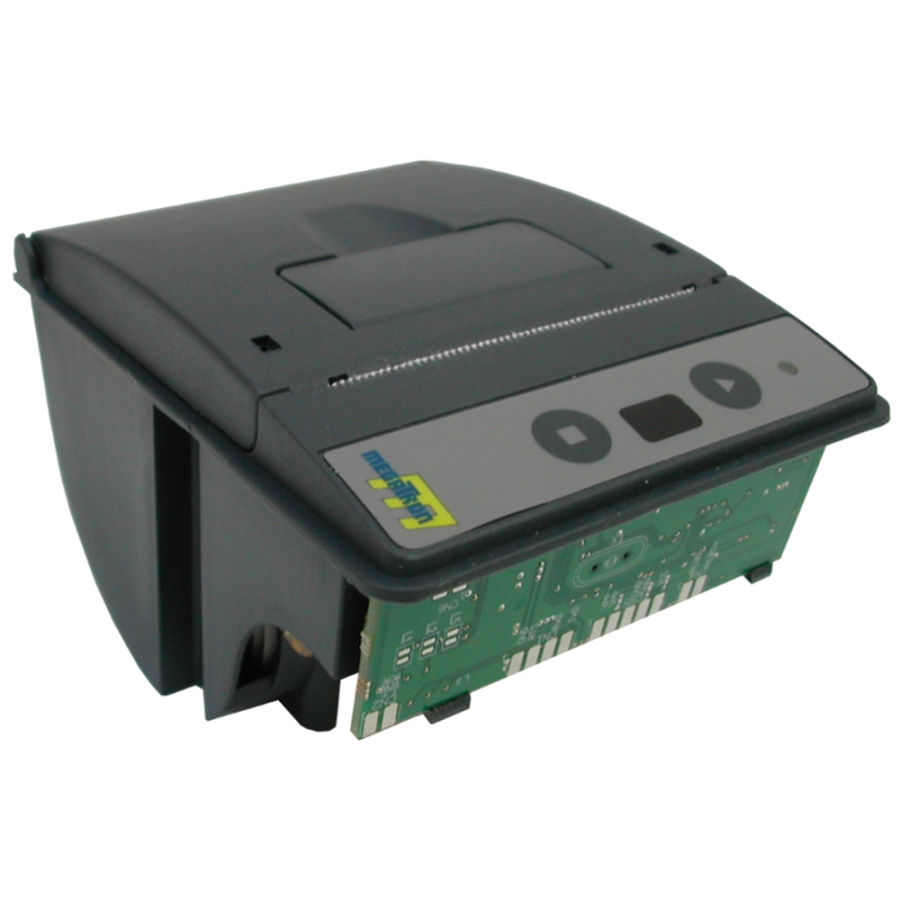

Note : This model is also available in miniature version with a paper case depth of 31 mm (MTH-2500).
Caractéristiques
- Small size
- ABS Dark grey plastic housing
- Easyloading printing module
- Paper case diameter 60 mm
- Fast printing up to 50 mm/s with 200 dpi
- 24 or 42 characters per line depending of the selected font
- Label printing is possible
- 2 different fonts

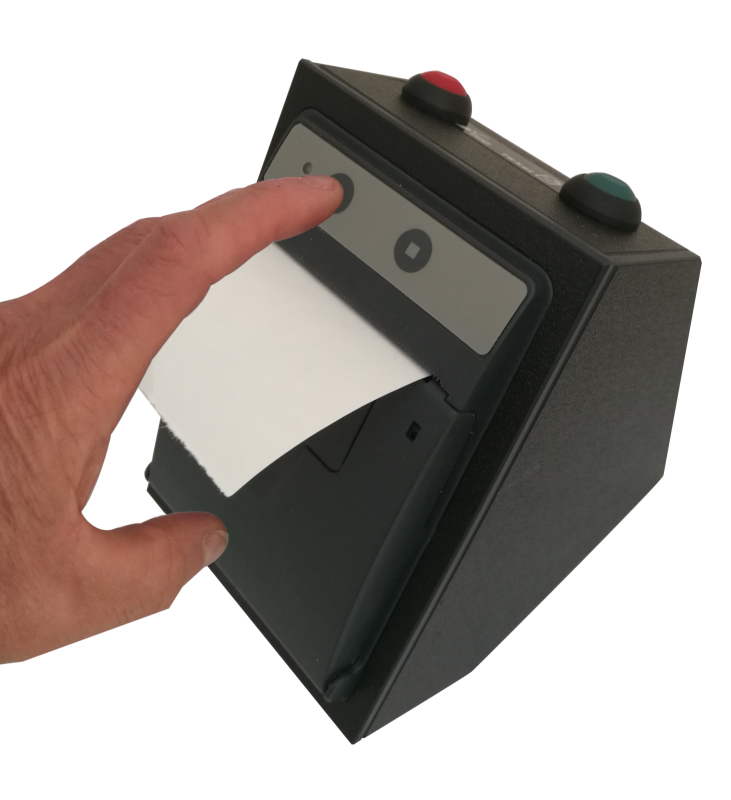

- Paper feed button
- Interfaces
- Serial RS232C
- Serial TTL
- USB 2.0, Printer class
- Parallel interface on an Add-on Card
- Ethernet Raw TCP/IP (for printing on the network from a computer with a driver)
- Ethernet Modbus over TCP (for printing from a Modbus terminal)
- RS422/RS485 (in reception only) or RS422 with Modbus over serial (RTU) protocol
- Status LED indicator on front panel
- 5V DC power supply or 9 to 40V DC on an Add-on card
- Paper-end detection
- 8Kb Flash memory for Downloading a logo.
It can be printed by closing a TTL input - Software controls
- MTH: Andig proprietary language
- Print texts, diagrams, graphic curves, bar codes
- PCL Raw compatibility (graphic)
- Supported compressions : No compression, Run Length, Tiff4, Delta Row
- Adjustable horizontal and vertical reduction to fit the printout in the paper width
- MTH: Andig proprietary language
- Windows XP, 2000, Vista, 7, 8, 8.1,10 (32/64 bits) "unsigned" drivers

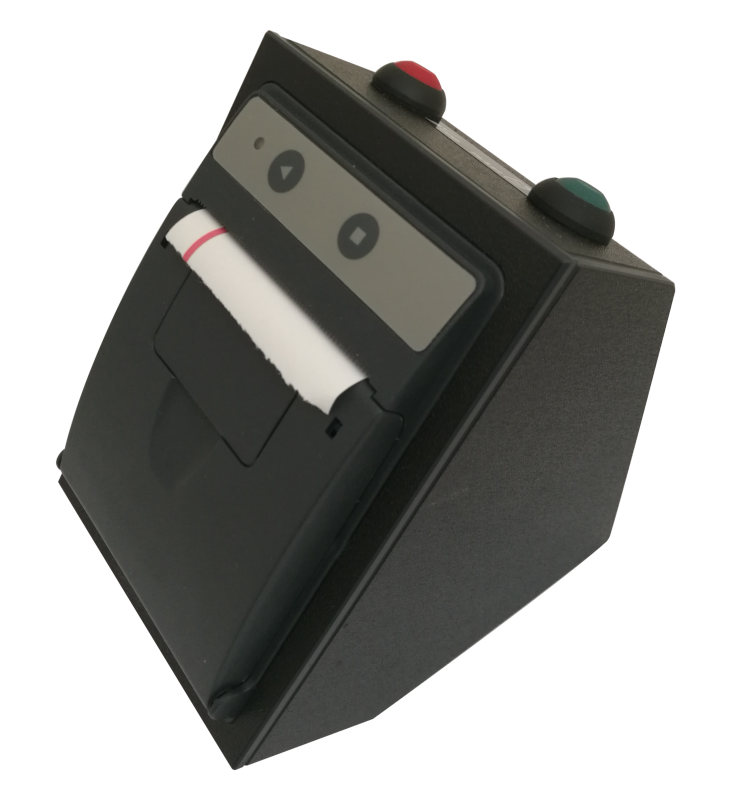

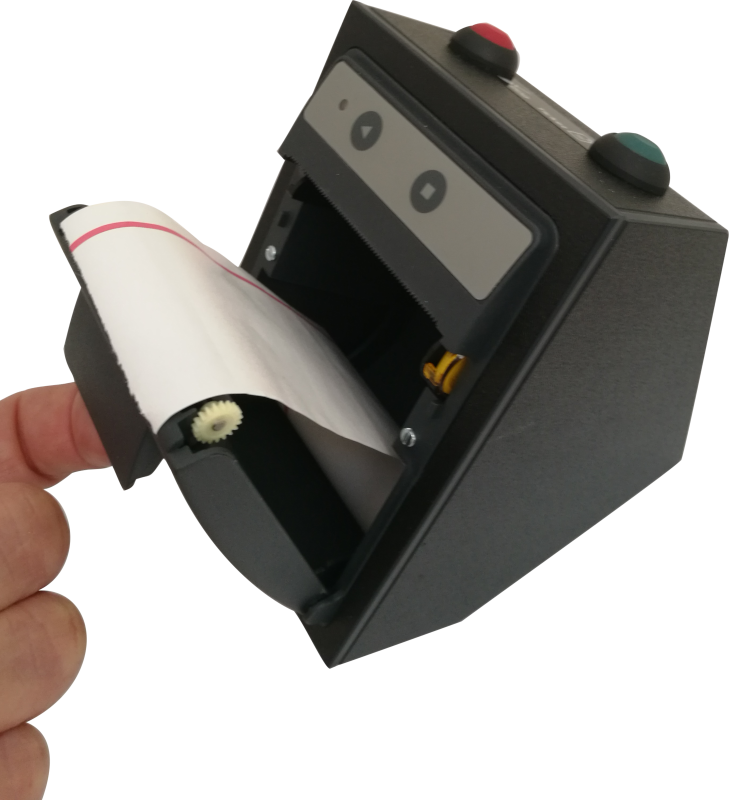

Paper loading

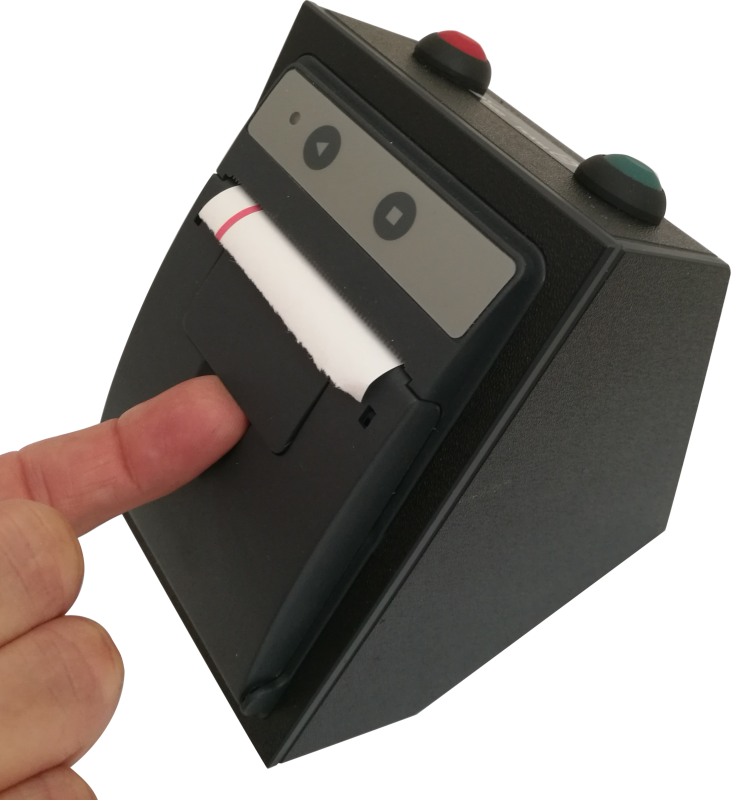

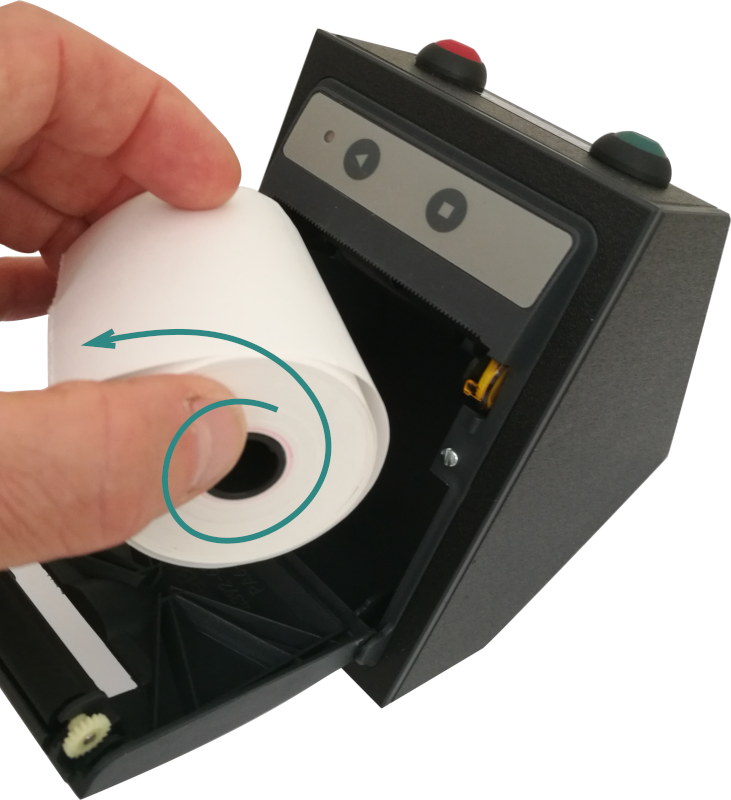

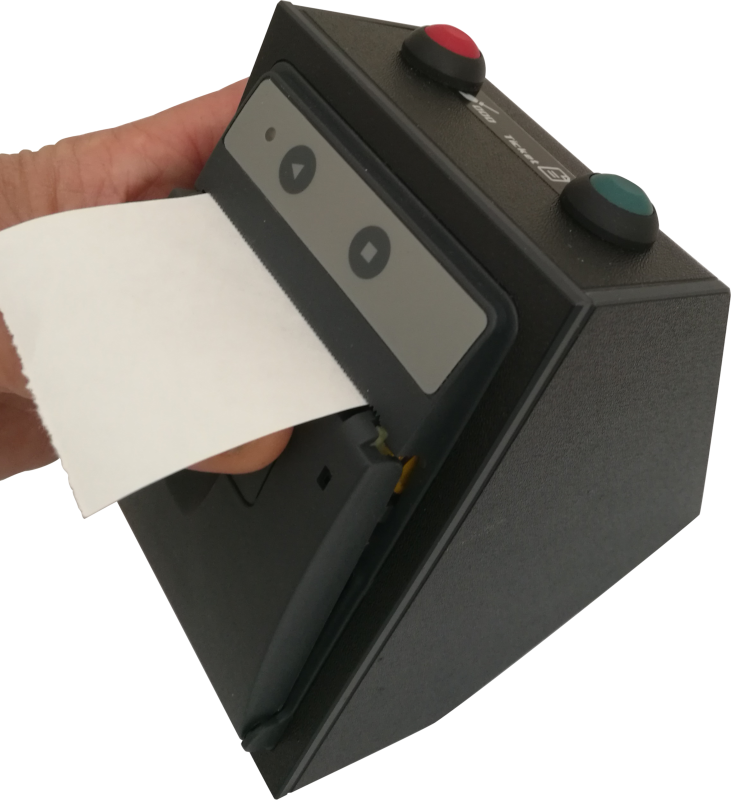

Inserting a roll of paper into a miniature printer is generally recognized as a delicate operation. This resolutely modern design has definitively solved this problem. Indeed, all you have to do is to open the bonnet and put the roll on it.
Accessories
| Cords | |||
|---|---|---|---|
| DKM-256 | for MTH-2511 or MTH-2521 | Serial flat cable (1x4 pins / free wires) | Shortform DKM-256 (Fr) |
| DKM-239-V | for MTH-2521 or MTH-2523 | RS232/V24 serial flat cable (1x4 pins / Sub-D9-F) | Shortform DKM-239-V (Fr) |
| DKM-247-P | for MTH-254x | Parallel flat cable (Sub-D25-M / 2x13 pins) | Shortform DKM-247-P (Fr) |
| DKM-257 | for MTH-25x1 | DC 5V power flat cable (1x5 pins / free wires) | Shortform DKM-257 (Fr) |
| Paper | |||
|---|---|---|---|
| MPA-TH-57-50-1 | Thermic paper roll (57 mm width, 50 mm diameter) | ||
| MPA-ETH | Thermic label roll (Support: 57 mm width, Ø 50 mm; Label:H 50 mm, w 50) | ||
Documentations
Technical manual MTH-2500, 2700 & 3500 (En)
Add-on Card for Modbus over serial (RTU) protocol
AN138 Connection on an Ethernet Interface
AN145: Connection of an USB Andig printer on a SIEMENS terminal (Fr)
AN157 Connection on a Modbus over TCP Interface
AN128: Label printing with the MTH-3500 printer

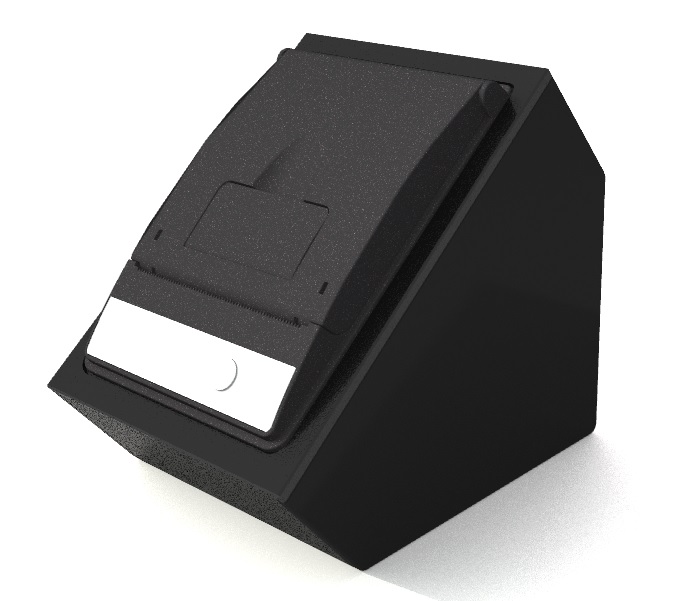

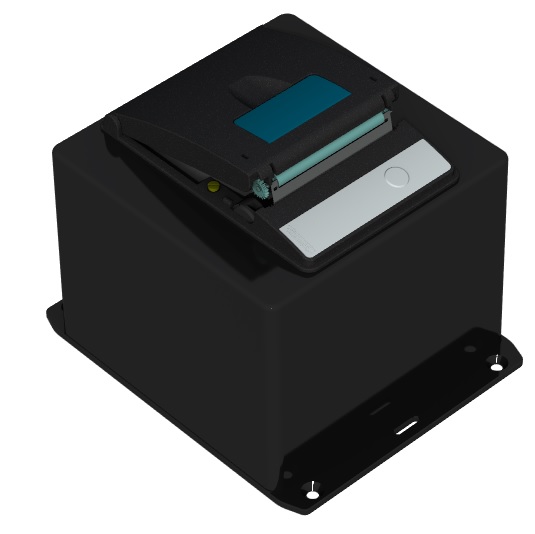

Cases for MTH-3500
Les modules MTH-3500 peuvent être facilement intégrés grâce à leur faible profondeur. Des accessoires tels que plaque de montage, boîtier mural ou de table sont disponibles :
