MCB-487 USB joystick interface - up to 9 axis

MCB-487 USB joystick interface - up to 9 axis

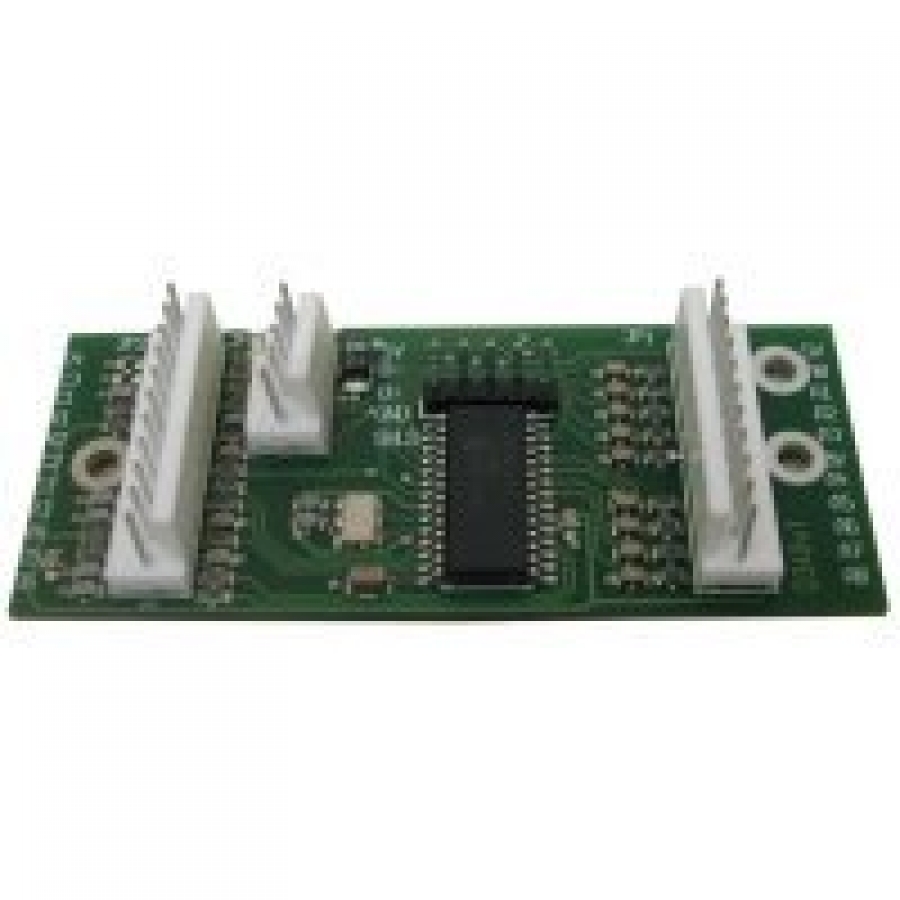

The MCB-487 is a USB interface for analog joysticks with up to nine axes. This interface connects an analog joystick to a PC running Windows (10, 8, Seven,XP, ...under DirectX 8.0a), Linux or a MAC running OS8.6 or higher.
It allows the joystick to be used either as a joystick or a mouse pointer without the need for a specific driver.


New : our MCB-487 interface is now available in a black ABS enclosure with screw terminals, making it easy to integrate into your existing systems. (MCB-487-B557)

Caractéristiques

  • Acquisition of pushbuttons as 4x7 matrix (max 28 buttons)
  • 8-bit acquisition of DC voltages supplied by joystick inputs (max. 9 analog inputs) and sending of delinearized values by creating a central neutral zone of ±1.25%.
  • The interface functions as a joystick or mouse, depending on the state of a switch that can be activated at any time.
  • Numerous configurations possible, depending on the number of buttons and axes.
  • +5V power supply via USB interface
  • In-situ reprogrammable firmware
  • Lug-type case integration + screw terminal block (MCB-487-B557 )

Documentation

Shortform MCB-487 (En)

 AN147 - Firmware Upload for MCB-487 (En)

Shortform MCB-487-B557
