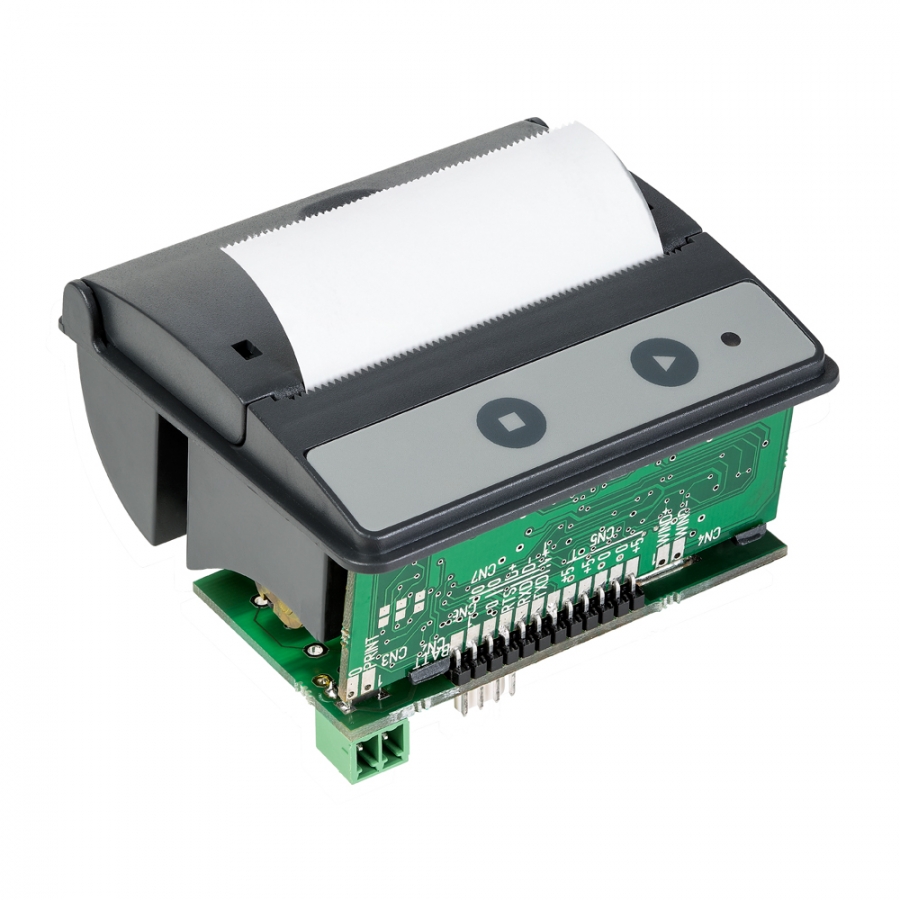

The little size of this MTH-2500 printer involves a little dimension of the paper. Also, the paper loading was thought to be very easy.
Note : This model is also available with a DIN 96x96 case (MTH-2700).
Details
- Small size
- ABS Dark grey plastic housing
- Easyloading printing module
- Fast printing up to 50 mm/s with 200 dpi
- 24 or 42 characters per line depending of the selected font
- 2 different fonts
- Paper feed button
- RS232C or TTL Interfaces
- LED indicator on front panel
- 5V DC power supply or 9 to 40V DC on an Add-on card
- Paper-end detection
- Integration depth : 27 mm
- Interfaces
- Serial RS232C
- Serial TTL
- USB 2.0, Printer class
- Parallel interface on an Add-on Card
- Ethernet Raw TCP/IP (for printing on the network from a computer with a driver)
- Ethernet Modbus over TCP (for printing from a Modbus terminal)
- RS422/RS485 (In reception only) or RS422 with Modbus over serial
- 5V DC power supply or 9 to 40V DC on an Add-on card
- 8Kb Flash memory for Downloading a logo
- It can be printed by closing a TTL input
- Software controls
- MTH: Andig proprietary language
- Print texts, diagrams, graphic curves, bar codes
- PCL Raw compatibility (graphic)
- Supported compressions: No compression, Run Length, Tiff4, Delta Row
- Adjustable horizontal and vertical reduction to fit the printout in the paper width
- MTH: Andig proprietary language
Paper loading
Inserting a roll of paper into a miniature printer is generally recognized as a delicate operation. This resolutely modern design has definitively solved this problem. Indeed, all you have to do is to open the bonnet and put the roll on it.
Accessories
| Cords | |||
|---|---|---|---|
| DKM-256 | for MTH-2511 or MTH-2521 | Serial flat cord (1x4 pins/free wires) | Shortform DKM-256 (Fr) |
| DKM-239-V | for MTH-2521 or MTH-2523 | RS232 serial flat cord (Sub-D9-F/1x4 pins) | Shortform DKM-239-V (Fr) |
| DKM-247-P | for MTH-254x | Parallel flat cord (Sub-D25-M/2x13 pins) | Shortform DKM-247-P (Fr) |
| DKM-257 | for MTH-25x1 | DC 5V flat cord (1x5 pins/free wires) | Shortform DKM-257 (Fr) |
| Paper | |||
|---|---|---|---|
| MPA-TH-57-31-1 | Thermal paper roll (57 mm width, 31 mm diameter) | ||
Documentations
Technical manual MTH-2500, 2700 & 3500 (En)
Add-on Card for Modbus over serial (RTU) protocol
AN138 Connection on an Ethernet Interface
AN145: Connection of an USB Andig printer on a SIEMENS terminal (Fr)
AN157 Connection on a Modbus over TCP Interface
AN160: Connection of an Ethernet Andig printer on an EATON terminal (Fr)
AN161: Connection of a RS232 Andig printer on a EATON terminal (Fr)
Windows XP, 2000, Vista, 7, 8, 8.1,10 (32/64 bits) "unsigned" drivers
Printer cases
The MTH-2500 thermal printer can be easily integrated. A lot of mounting accessories are available for DIN 96x96 case, 3U rack, or desktop case. MTH-2500 printer adapts itself perfectly to a portable case because of its weak depth of integration (27 mm).
